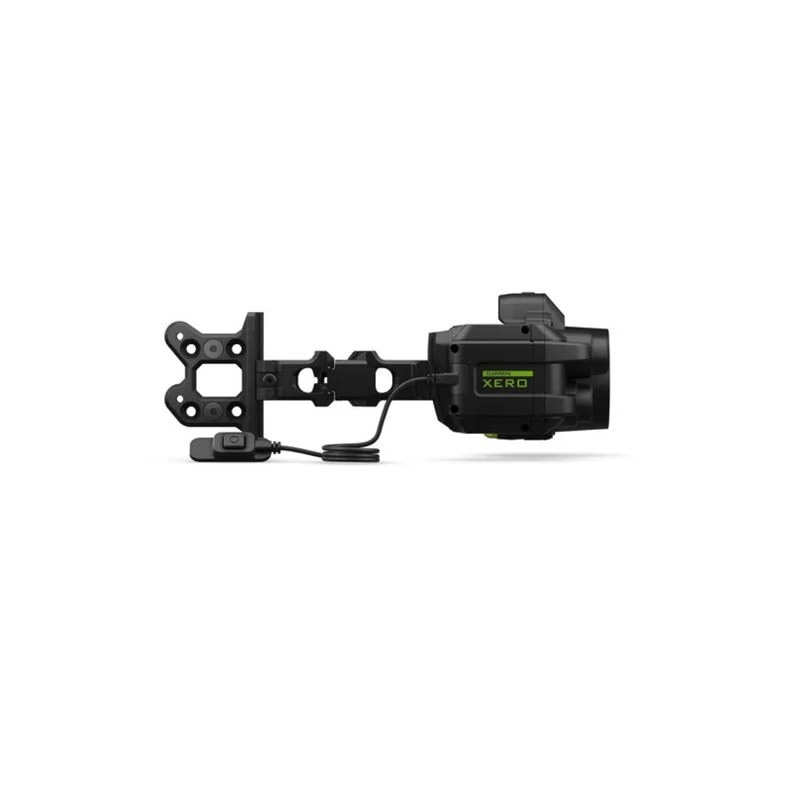

Garmin Xero A1i Bow Sight

GARMIN XERO A1I BOW SIGHT

Know the range, and shoot the exact pin with minimal movement using Xero bow sights. They’re the first bow-mounted digital laser range finders and targeting display systems that measure the angle-compensated distance to your target and provide an LED pin for the shot — even on those “in-between” yardages. LED pins automatically adjust brightness to conditions and allow you to see your target, unobstructed by physical pins. A single-button trigger lets you range at rest or full draw to game up to 100 yards away or to reflective targets up to 300 yards. A1i is customizable for single-pin and multipin configurations or manual pin selection.

Xero bow sights mount directly to your bow, providing a highly accurate laser range finder that calculates the exact LED pin to use for the shot. There’s no need to fumble with a separate range finder or guess which pin to use.

No more guessing about yardages in between pins. Xero A1i bow sights instantly provide the precise angle-compensated distance to game up to 100 yards away or up to 300 yards on reflective targets, at rest or full draw.

The beauty of using bright LED pins is that you can clearly see them over your target, unobstructed by physical pins. Xero A1i gives you the option to use red or green LEDs.

When stealth and stillness are critical, Xero bow sights require minimal movement, at rest or full draw. You mount the button in the most convenient location for your grip so that 1 finger can silently trigger the laser range finder to give you the distance and exact pin you need for the shot.

Built-in level indicators allow you to eliminate cant from your shot. A top pin blinking indicates canting the bow to the right. A bottom pin blinking indicates cant to the left. The center pin is always solid. These 3 pins will always appear away from your aiming pins.

FEATURES

• Auto-ranging digital bow sight automatically measures distance to the target and provides an LED pin for the shot
• Dual-color LED pins allow you to clearly see your target, unobstructed by physical pins
• Silent single-button trigger requires minimal movement; lets you range at rest or full draw up to 100 yards on game or up to 300 yards on reflective targets
• Customizable for single-pin and multipin configurations or manual pin selection
• Laser Locate feature enables use of a compatible Garmin GPS device to know exactly where the target was located when the shot or range was taken
• 1 year of battery life with 2 lithium AAA batteries (not included)

TECH SPECS

• PHYSICAL DIMENSIONS: 3.9″ x 3.1″ x 3.8″ (100.3 x 79.4 x 97.1 mm)
• DISPLAY SIZE: 1.00″W x 0.42″H (2.5 x 1.1 cm); 2.0″ diag (5.0 cm)
• DISPLAY RESOLUTION: 160 x 68 pixels
• DISPLAY TYPE: sunlight-visible, transflective memory-in-pixel (MIP)
• WEIGHT: 14.7 oz (418.0 g)
• BATTERY TYPE: 2 lithium AAA (not included)
• BATTERY LIFE: Up to 1 year
• WATER RATING: IPX7

ADDITIONAL SPECS

• LED pins: 2 colors (red and green)
• Pin diameters: .007” and larger for red, .009” and larger for green
• Range: 100 yards to game; 300 yards to reflective targets
• Operating range: -20C (-4F) to 60C (140F) with two AAA Lithium batteries.
• Glass lens coating: target side is anti-reflective, water repellant and easy clean
• Archer side is 20% reflective, water repellant and easy clean
• Light projection: no visible light is ever projected towards the target
• Magnification: none
• Pin brightness: ambient light sensor controlled or manual
• Silent button trigger
• Customizable fixed pins
• Laser Locate feature
• Multiple arrow profiles
• Shot dynamics
• Shot counter
• Compatible with Garmin GPS devices: yes (see Compatible Devices tab)
